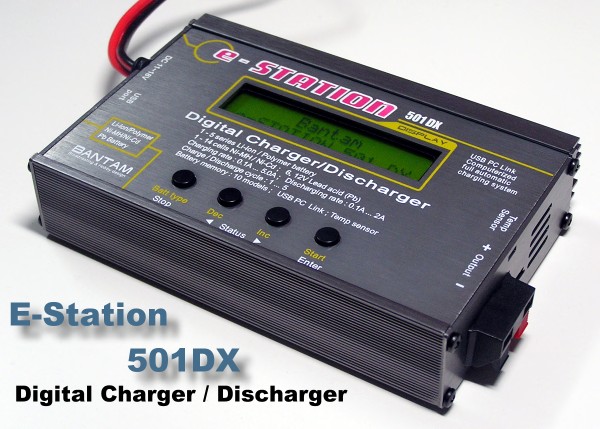

E-station 501DX (NiMh/NiCd/Li-ion/LiPo/Pb) charger

Specifications:

* Input voltage: 10-18V DC
* Charge current: 0.1-5.0A (0.1A step)
* Discharge current: 0.1-2.0A (0.1A step)
* Display: LCD 16char x 2lines
* Dimension: 130 x 90 x 28 mm
* Charge->discharge: 1-5 cycles
* Discharge->charge: 1-5 cycles
* Battery data memory: up to 10 data
* Battery types:
o Li-ion/LiPo: 1-5 series (Manual or Auto voltage detection)
o Ni-MH/NiCd: 1-12 cells
o Pb: 6,12V

User's setting-up parameters

* Lithium battery voltage type: 3.6 or 3.7 volt per cell
* NiCd Delta-peak voltage sensitivity: 1 to 15mV
* NiMH Delta-peak voltage sensitivity: 1 to 15mV

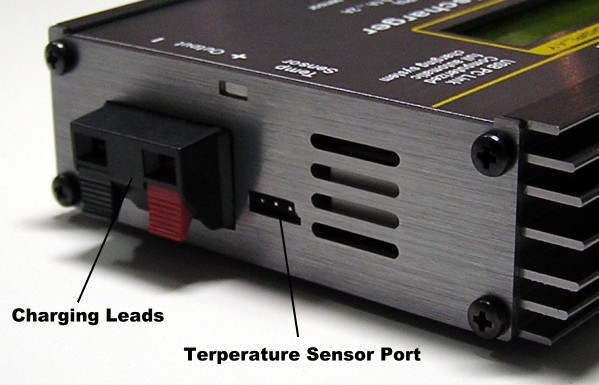

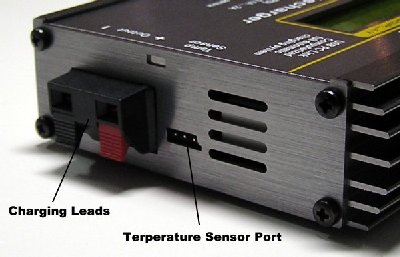

* Battery temperature cut-off: 20 to 80C or OFF
* Waste time between charge/discharge: 1 to 60 min.
* Trickle charge mode: ON/OFF
* Integral timer limit for safety: 10 to 720 min.or OFF
* Maximum charging capacity limit for safety: 10 to 9990mAh or OFF
* Key beep and buzzer sound: ON/OFF
* Input power low alert: 1 to 11V

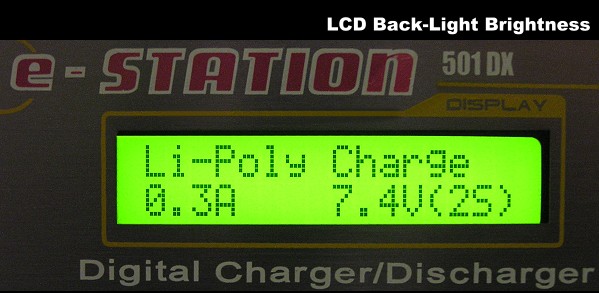

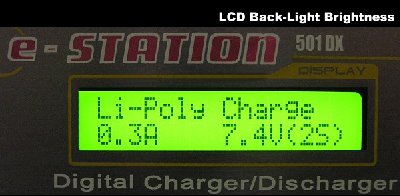

* LCD back-light brightness: 1 to 100 steps

Alguien puede indicarme que tal es el cargador este.

GRacias
